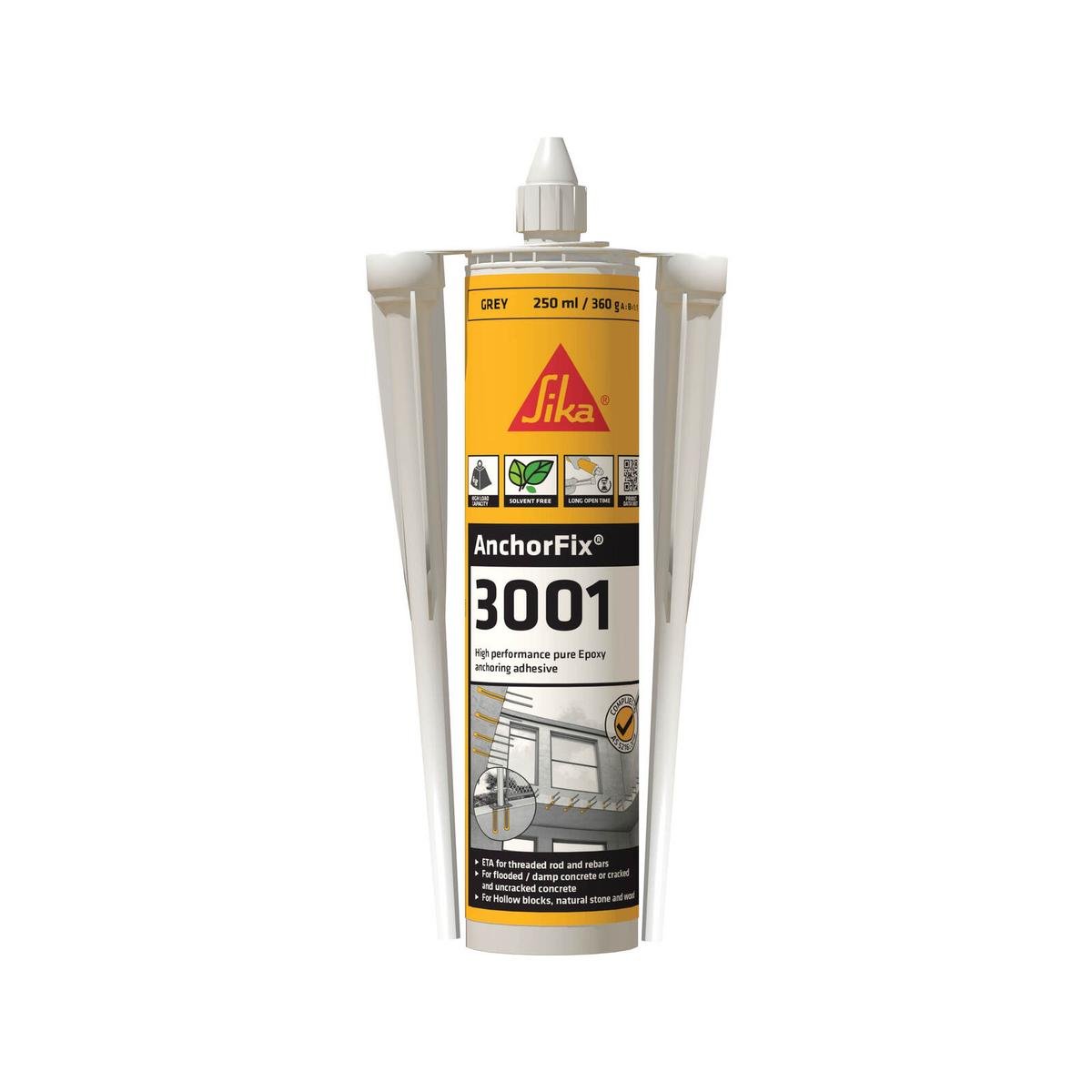

Sika AnchorFix 3001 Epoxy Chemical Anchoring Adhesive 250 ml
Sika AnchorFix 3001 is a two part, high performance epoxy anchoring adhesive for fixing threaded rods, bolts, and reinforcement bars into cracked or uncracked concrete and other solid substrates. It delivers very high load capacity, reliable performance in damp concrete, and a long open time that makes placement simple on site.
Why choose AnchorFix 3001
- High load capacity with shrinkage free cure
- Works in dry or damp concrete and overhead locations
- Long open time for easier installation
- Seismic tested C1 and fire resistant
- Styrene free and low wastage
- Approved for contact with drinking water
Typical uses
- Rebar and threaded rod anchoring in new builds and refurbishments
- Fixing balustrades, handrails, supports, and railings
- Securing window and door frames and general metalwork
Suitable substrates
- Concrete cracked or uncracked
- Solid and hollow masonry
- Natural and reconstituted stone
- Wood and solid rock
Key approvals
- Complies with NCC reference to AS 5216 design of post installed fastenings in concrete
- Potable water approved to AS 4020
- ICC-ES ESR-3608 for anchoring in cracked concrete under static, wind, and earthquake loading
Specifications
| Chemistry |
Epoxy, two part 1 to 1 by volume |
| Colour |
Mixed grey |
| Density |
Approx 1.49 kg per L |
| Service temperature |
Long term from minus 40 °C to plus 40 °C |
| Compressive strength |
Approx 85 N per mm² at 7 days |
| Tensile strength |
Approx 23 N per mm² at 7 days |
| Mixing |
Static mixer nozzle supplied, standard sealant gun for 250 ml |
| Packaging |
250 ml cartridge |
| Shelf life |
24 months unopened at 10 to 25 °C in dry storage |
Open time and cure guide
| Substrate or ambient temperature |
Open time |
Full cure |
| +25 to +30 °C |
About 8 minutes |
About 6 hours |
| +20 to +25 °C |
About 11 minutes |
About 7 hours |
| +15 to +20 °C |
About 15 minutes |
About 8 hours |
| +10 to +15 °C |
About 20 minutes |
About 12 hours |
| +5 to +10 °C |
Use with warmed cartridge minimum 10 °C |
About 24 hours |
How to use
- Drill the hole to the specified diameter and depth for the anchor size.
- Clean thoroughly. Blow out dust with oil free compressed air and brush with a steel hole cleaning brush. Repeat the blow and brush steps to remove all fines.
- Fit the static mixer. Dispense material until a uniform grey appears and discard the first small amount.
- Inject from the bottom of the hole while withdrawing the nozzle to avoid trapping air. For deep holes use an extension tube. In hollow masonry use a perforated sleeve.
- Insert the anchor with a slow rotary motion until set at depth. Excess resin should slightly extrude.
- Do not disturb or load until the full cure time has elapsed for the temperature.
Good to know
- Non sag formula for overhead applications
- Ensure substrate is sound, clean, and at least 3 °C above dew point
- Clean tools immediately after use. Cured material must be removed mechanically
What is included
One 250 ml cartridge with static mixer nozzle. Applicator gun not included.
Storage
Store sealed in a cool, dry place between 10 and 25 °C. Keep out of direct sun and away from moisture.
Safety
Read the Safety Data Sheet before use. Wear suitable PPE and provide ventilation. Keep out of reach of children.
