DeWalt PURE500+ is a high strength, two-component epoxy chemical anchor for fixing threaded rod and reinforcing bar into concrete, supplied here as a single 585ml 3:1 cartridge with a mixing nozzle. It is built for engineered, load-bearing fixings in cracked and uncracked concrete, and it also suits post-installed rebar connections where new steel needs to tie into existing concrete.About the formulaPURE500+ is a pure epoxy that you mix as it is dispensed. The cartridge holds the two parts at a 3:1 ratio, and they blend inside the nozzle so every bead is correctly proportioned. DeWalt describes it as a low odour formula with a relatively long working time. It is slow setting, even at higher temperatures. It is approved for water-filled holes and for diamond cored holes, and it is also approved for overhead installation. The manufacturer lists a 100-year design life and a 24-month storage life. Approvals include ETA-20/1287 (EAD 330499) for threaded rod and rebar in cracked and uncracked concrete, ETA-20/1286 (EAD 330087) for post-installed rebar, and ICC-ES ESR-4809. It also carries seismic C1 and C2 performance categories and fire resistance ratings for anchor and rebar connections. Drinking water approvals are listed too (NSF/ANSI 61 and AS/NZS 4020).Where to use itIndoors and outdoors: structural anchoring of threaded rod (M8 to M30) and reinforcing bar (Ø8 to Ø32) into concrete. Common jobs include fixing steel plates, brackets and posts, and drilling and bonding starter bars for slab, wall and footing extensions. The post-installed rebar approval covers bar sizes Ø8 to Ø40.The suitable base material is concrete, in dry, damp or water-filled holes. The anchor elements are carbon steel, stainless steel (A2, A4) and high corrosion resistance steel threaded rod, and reinforcing bar.How to use itDrill the hole to the diameter and depth set out in the DEWALT specification guide for your rod or bar size. Clean the hole thoroughly using the method that guide specifies (brushing and blowing out). Fit the supplied mixing nozzle to the cartridge, load it into a compatible 3:1 dispenser and discard the first portion until the colour is even and streak free. Fill the hole from the bottom to avoid trapped air, then push in the clean rod or bar with a slight twist. Hold the element in place and leave it undisturbed through the gel time. Do not load, torque or fix to the anchor until the full cure time has passed.Important notesWorking and cure times depend on the temperature of the concrete. DeWalt's published figures for dry concrete are about 90 minutes of working time and 144 hours cure at 0 to 4°C, 30 minutes and 12 hours at 20 to 24°C, and 8 minutes and 4 hours at 40°C. Wet concrete needs a longer cure, about 24 hours at 20 to 24°C. Check the full table for other temperature ranges before you plan the job. This is an engineered anchoring product. Design capacities, edge distances, spacings and embedment depths must come from the DEWALT technical documents and the relevant approvals. Use the nozzle that comes with the cartridge, and fit a fresh one if you stop for longer than the working time. The cartridge needs a compatible 3:1 dispenser, which is not part of this listing.Specifications Brand DeWalt Product PURE500+ Epoxy Injection Adhesive Anchoring System Pack 1 x 585ml 3:1 cartridge with 1 mixing nozzle Base Two-component epoxy Mix ratio 3:1 (by volume, cartridge) Application Cartridge, via 3:1 dispensing tool and mixing nozzle Anchor elements Threaded rod M8 to M30, reinforcing bar Ø8 to Ø32, post-installed rebar Ø8 to Ø40 Base material Cracked and uncracked concrete Working time (20 to 24°C) About 30 minutes Cure time (20 to 24°C, dry concrete) About 12 hours Approvals ETA-20/1287, ETA-20/1286, ESR-4809, seismic C1/C2, NSF/ANSI 61, AS/NZS 4020 Model number DFC1110500 Use Interior and exterior structural anchoring SafetyTwo-part epoxy resins and hardeners can irritate or burn skin and eyes, and some people develop an allergic skin reaction after repeated contact. Wear chemical-resistant gloves, safety glasses and protective clothing, and make sure there is good ventilation, especially when working in enclosed spaces or overhead. In case of skin contact, wipe off and wash thoroughly with soap and water. Keep out of reach of children, and do not let uncured product enter drains or waterways. Refer to the Safety Data Sheet (SDS) for full details.
$74.61

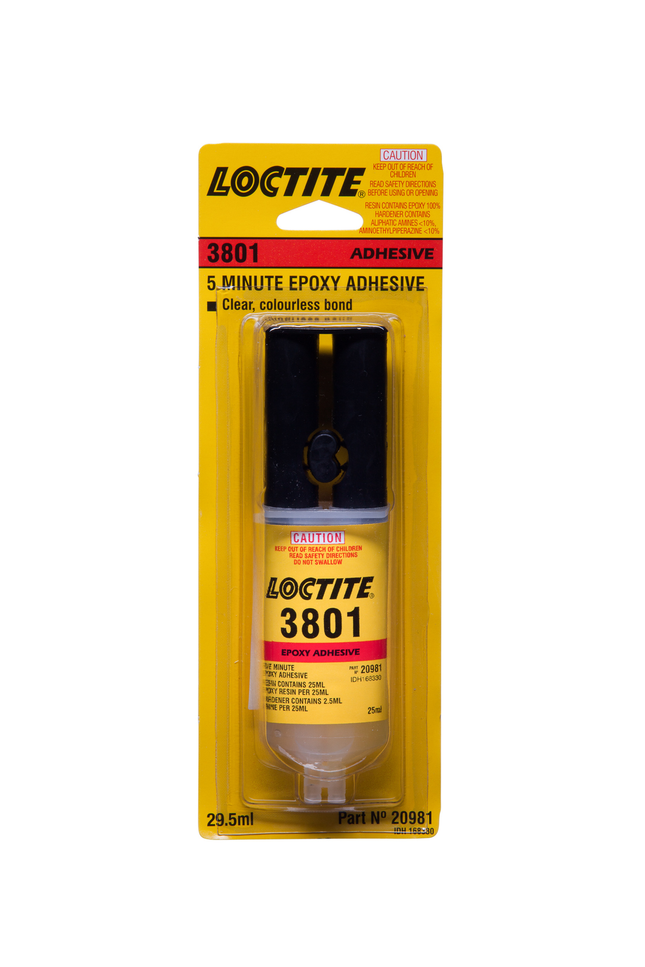

Bonds metals, ceramics, concrete, fibreglass, marble and wood. Syringe dispenser accurately measures equal amounts of resin and hardener to prevent wastage. Fast curing, cure commences in five minutes and reaches full cure in one hour. When cured, the bond is transparent and virtually colourless. Loctite 5 Minute Epoxy Adhesive's premium formulation is solvent-free and 100% solids providing a non-shrink, environmentally friendly bond. High viscosity provides a good gap-filling ability. DIRECTIONS FOR USE: 1. Surfaces must be clean and dry. If possible, roughen surface with sandpaper to improve keying and bonding. 2. Cut tips of twin nozzle with a sharp knife and remove nozzle cap from syringe plunger. 3. Push the twin plunger to squeeze out equal amounts of resin and hardener in the amounts required. 4. Mix the resin and hardener for one or two minutes until the colour is completely uniform. 5. Apply immediately to both surfaces and press together. Pressure clamping is not necessary, but allow the adhesive to set for at least 5 minutes before moving. Remove any excess adhesive immediately. 6. Important. After dispensing product be certain to insert plug supplied in the nozzle of the syringe to prevent waste. Preferably store in an upright position as packaged. Structural Bonding - Fast Cure. Sets in 5 minutes. Sets in 5 minutes. Good chemical resistance. Fixture time: 4-6 min Temperature Resistance: Up to 180°F (82°C)
$15.11
Formulations that can cure or set at reduced ambient temperatures, helping work continue in cool conditions. Useful for winter installs, unheated workshops and shaded exteriors. Check the minimum application temperature, handling time to strength, and full-cure schedule; some systems benefit from extended cure or post-cure. Use filters to refine by chemistry and method. Always review the product page and TDS/SDS for preparation and curing guidance.
