Description

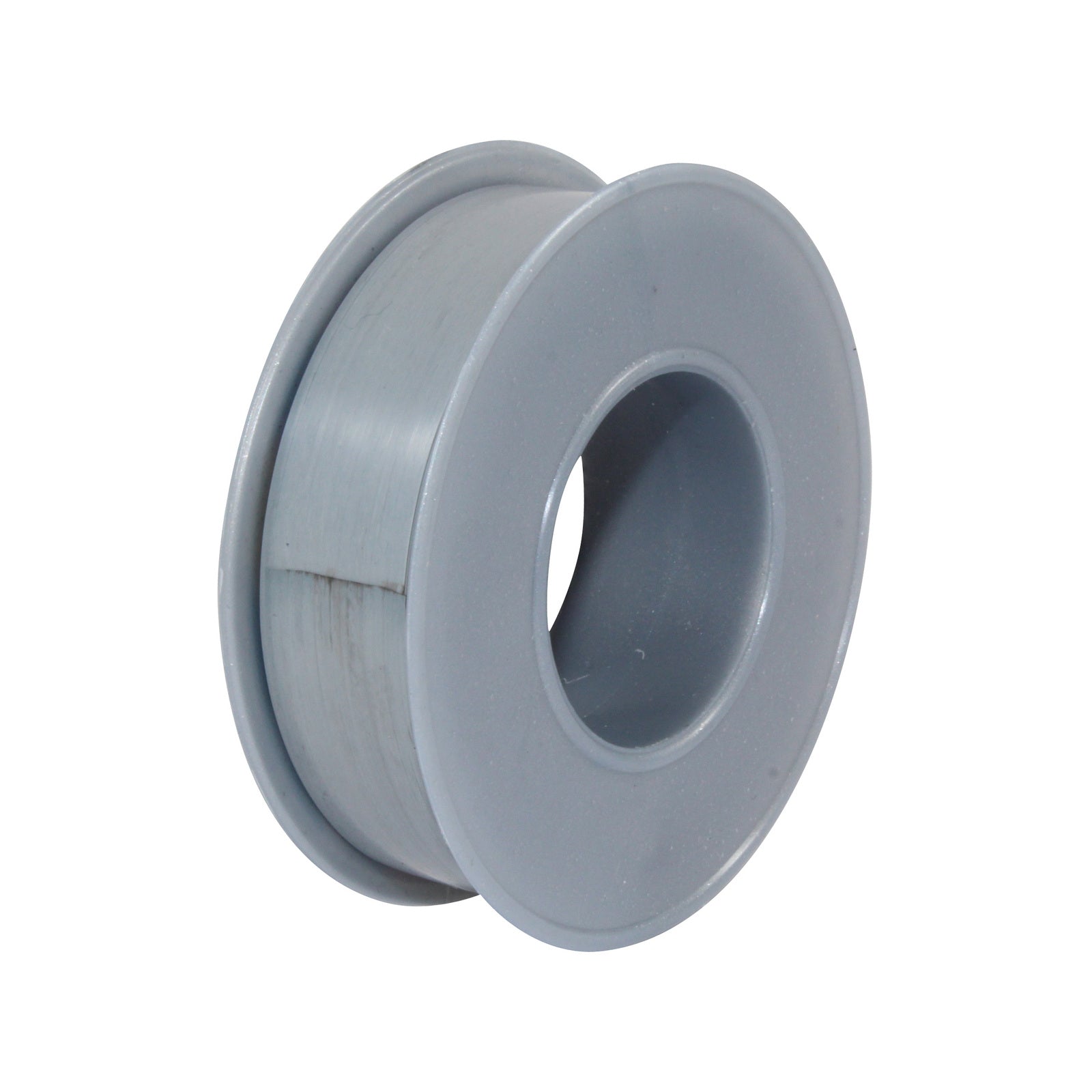

Fix-A-Tap Uniseal High Density PTFE Thread Seal Tape is a grey thread seal tape for gas and water pipe connections, supplied as a single 12mm x 10m roll on a card. The metallic grey pigment helps it blend in with chrome and galvanised fittings, so it is a good choice when you don't want white tape showing at the joint.
About the formula
This is a high density PTFE tape designed to form a leak-proof seal on suitable metal threads. It carries both AGA approval for gas threads and WaterMark approval for water threads. The AGA temperature range is -10°C to +210°C and the rated working pressure is 2MPa.
Where to use it
Indoors: threaded joints on water and gas pipework, such as fittings, connectors and valves, where a discreet grey finish is preferred.
Outdoors: the manufacturer does not give specific outdoor guidance, so check the fitting and installation requirements for your job.
It is intended for suitable metal pipe threads on gas and water lines. Always confirm that the tape suits the fitting and the service you are sealing.
How to use it
Make sure the male thread is clean, dry and free of old tape, oil and debris. Start at the thread end and wrap the tape around the thread in the direction the fitting will be tightened, so it doesn't unravel as you screw the joint together. Keep the tape snug and press it into the thread form, then assemble the joint. Gas fitting must be carried out by a licensed gas fitter in line with local regulations.
Important notes
Use only within the AGA temperature range of -10°C to +210°C and the rated working pressure of 2MPa. This tape is for threaded metal connections and is not a substitute for a compression, flange or push-fit seal. If a joint still weeps after assembly, dismantle it, remove the old tape and rewrap with fresh tape rather than adding more on top.
Specifications
| Brand |
Fix-A-Tap |
| Product |
Uniseal High Density PTFE Thread Seal Tape |
| Size |
12mm wide x 10m long |
| Pack |
1 roll on card |
| Colour |
Metallic grey |
| Material |
PTFE |
| Application |
Hand wrapped onto pipe threads |
| Temperature range (AGA) |
-10°C to +210°C |
| Rated working pressure |
2MPa |
| Approvals |
AGA and WaterMark |
| Manufacturer model number |
208637 |
| Use |
Gas and water pipe threads |
Safety
As general good practice, keep the tape away from heat and flame beyond its rated temperature range, avoid overheating PTFE, and keep it out of reach of children. Wash your hands after handling if working in a dusty or dirty environment. Always follow the manufacturer's instructions and local plumbing and gas regulations. Refer to the Safety Data Sheet (SDS) for full details.
