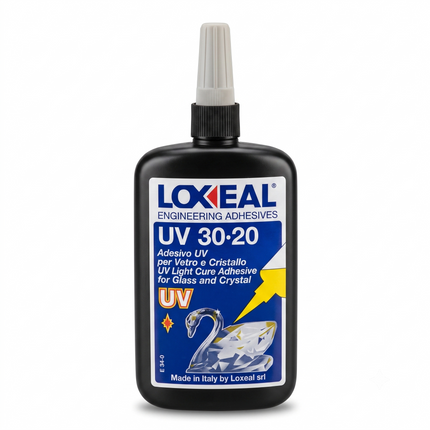

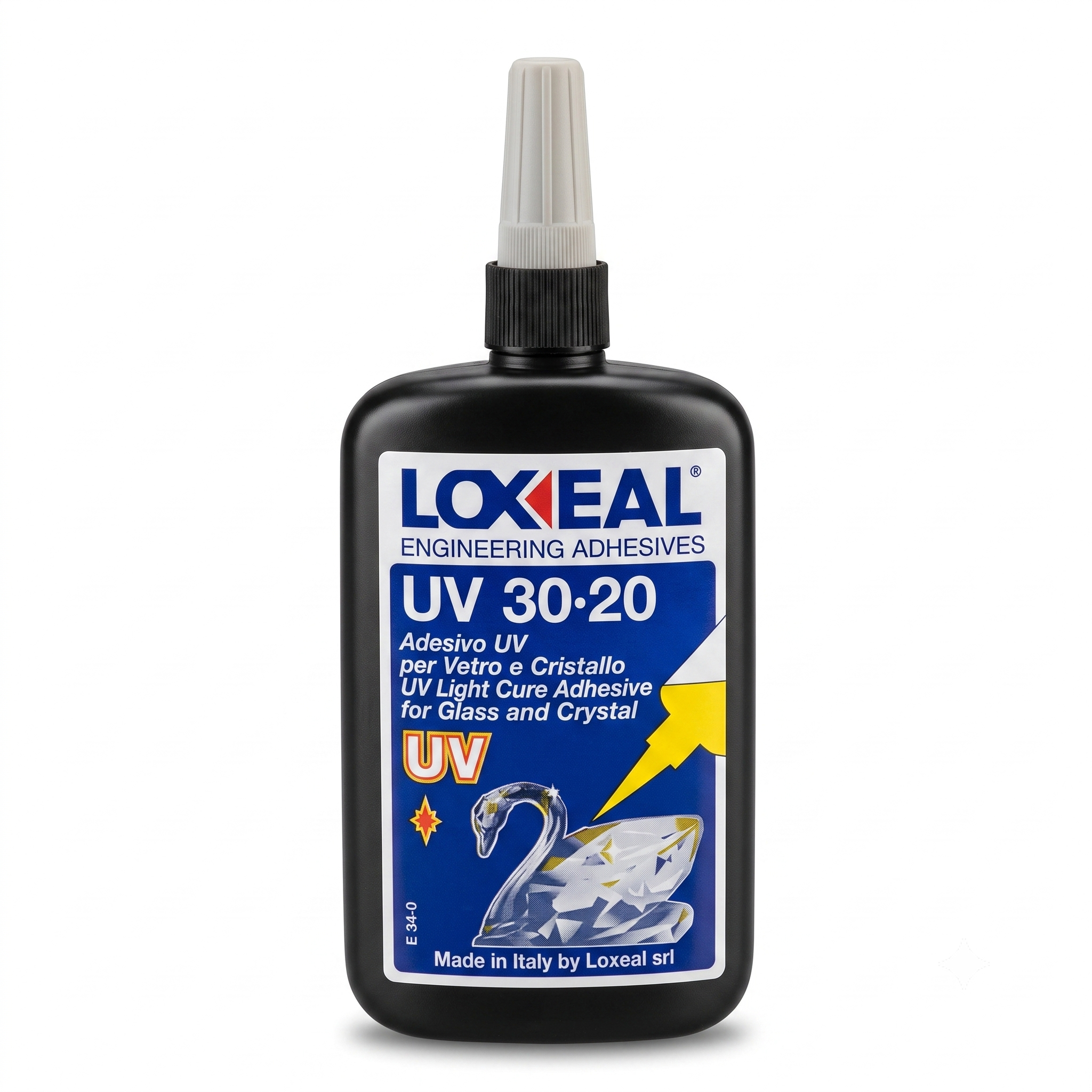

Loxeal 30-20 UV-Curable Adhesive 50ml
Loxeal 30-20 is a fast-curing, high-strength UV adhesive purpose-made for glass and crystal bonding. Under a suitable UV lamp it sets in as little as 6–10 seconds, and its water-clear finish with over 98% light transmittance makes joints all but invisible — the go-to choice for decorative tableware, household and furnishing accessories, giftware and fine crystal work.
Why choose Loxeal 30-20?
- Cures in seconds under UV light (365 nm) — parts are handled almost immediately
- Exceptional optical clarity: clear, colourless, non-yellowing joints
- High bond strength on glass-to-glass and glass-to-metal assemblies
- Bridges bond lines from 0.03 mm up to 1.5 mm
- Convenient one-part product — no mixing, cures only where the light reaches
Typical applications
Bonding glass and crystal in decorative tableware, homewares, furnishing accessories, bonbonnières and gift articles; ideal for precious crystal pieces where the joint must stay invisible.
How to use
- Ensure both parts are clean and completely dry.
- Apply a small amount of adhesive to one surface and bring the parts together.
- At least one part must be UV-transparent — align the assembly before exposure.
- Cure with a UV source emitting between 365 nm and 420 nm (around 100 mW/cm² recommended); exposure of 6–10 seconds is typically sufficient.
- Allow slightly longer exposure for larger gaps or tinted substrates.
Cure times
Typical fixture under a suitable UV lamp is 6–10 seconds. Actual cure time depends on lamp intensity, distance from the light source, bond-line gap and how much UV passes through the substrate.
Specifications
| Chemistry |
Methacrylate ester, UV-curing |
| Colour |
Clear / colourless |
| Viscosity (+25°C) |
2,200–2,900 mPa·s |
| Specific gravity |
1.1 g/ml |
| Gap fill |
0.03–1.5 mm |
| Tensile strength (ASTM D-2095-69) |
10–14 N/mm² |
| Hardness |
Shore D 50–65 |
| Elongation at break |
80–100% |
| Light transmittance |
> 98% |
| Refractive index |
1.49 |
| Service temperature |
-55°C to +120°C |
| Flash point |
> +100°C |
| Shelf life |
1 year at +25°C in original unopened packaging |
Chemical resistance
Cured Loxeal 30-20 shows excellent long-term resistance to alcohol and refrigerant gases and good resistance to gasoline. Sustained exposure to high humidity (90% RH at +40°C) reduces bond performance, so it is best suited to dry indoor service.
Important notes
- At least one bonded part must transmit UV light for the adhesive to cure.
- Cure speed drops with tinted or UV-filtering glass — extend exposure accordingly.
- Not recommended for permanently damp or wet environments.
- Store in a cool, dry place at no more than +25°C, away from daylight; do not return used product to the bottle.
Safety
Consult the Safety Data Sheet (SDS) before use and avoid looking directly at UV curing lamps without eye protection.
The information above is provided as a general guide only, based on the manufacturer's technical data. Always confirm suitability for your specific application before use.
