Corded Workshop Tool
Ryobi Belt & Disc Sander
370W for Wood Finishing
Two sanding stations in one compact bench unit. The belt sander handles fast stock removal and edge shaping while the disc sander delivers precise flat and curved surface finishing. One machine, one power point, a full range of sanding tasks covered.
370W Motor Power
2-in-1 Belt and Disc
150mm Disc Size
240V Power Supply
Product Overview

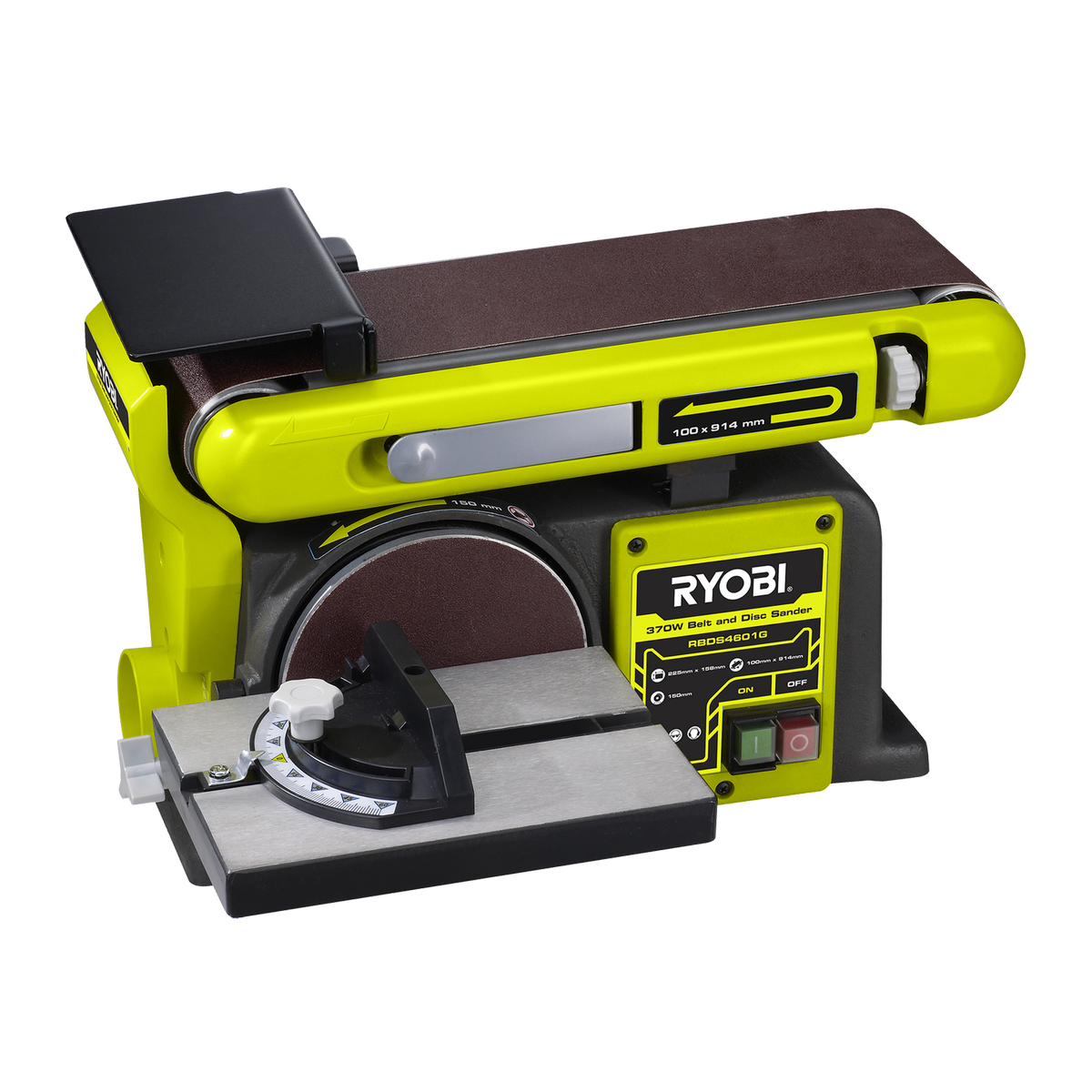

The Ryobi 370W Belt and Disc Sander is a benchtop combination sanding unit designed for the home workshop. It combines a horizontal belt sander and a vertical disc sander into a single compact machine, giving woodworkers, hobbyists, and DIYers access to two fundamentally different sanding actions from one bench footprint and one power source.
The belt sander is the workhorse of the pair, moving abrasive quickly across a workpiece for efficient stock removal, edge shaping, and surface levelling. The disc sander excels at end grain work, shaping curves, and bringing a flat surface to a consistent finish with more control than a belt allows. Used together, the two stations take a workpiece from rough sawn to finished surface without changing machines.
Two Sanding Stations, One Machine
Belt Sander Continuous Loop Abrasive
A continuously moving abrasive belt for fast, efficient material removal across flat surfaces and along edges. The belt table tilts for angled sanding.
- Rapid stock removal on rough timber
- Levelling and flattening wide boards
- Edge shaping and easing sharp corners
- Cleaning up sawn or routed edges
Disc Sander Rotating Abrasive Disc
A rotating 150mm abrasive disc with an adjustable mitre table for flat and angled sanding. The disc is ideal for end grain and curved surface work.
- End grain smoothing on cut timber
- Shaping and refining curved profiles
- Sanding small parts and components
- Accurate angled work using the mitre table
Choosing the Right Abrasive Grit
40 to 60 Coarse Grit
Heavy stock removal, shaping, and cleaning up rough sawn surfaces. Use on the belt sander for fast material take-off on solid timber and MDF.
80 to 120 Medium Grit
General sanding, removing scratches from coarser grits, and preparing surfaces for finer finishing. Suitable for both belt and disc stations.
150 to 240 Fine Grit
Final sanding before finishing, paint preparation, and smoothing between coats. Leaves a surface ready for stain, oil, or lacquer application.
Tilting Belt Table
The belt sander platen tilts from 0 to 90 degrees, allowing you to sand at any angle from flat horizontal to fully vertical. Ideal for shaping angled edges, bevels, and chamfers on timber components.
Mitre Table on Disc Sander
The disc sander includes an adjustable mitre table that locks at angles from 0 to 45 degrees. Use it to sand accurate mitres on small parts, picture frame components, and box joints.
Dust Collection Port
An integrated dust extraction port on both the belt and disc station accepts standard vacuum hose connections to keep the work surface clear and reduce airborne fine dust during extended sanding sessions.
Quick-Release Belt Tensioner
The belt tension releases quickly for fast abrasive belt changes without tools. Swap grit grades between operations in seconds and get back to work without unnecessary downtime.
Belt Tracking Adjustment
An onboard tracking knob keeps the abrasive belt centred on the platen during operation. Proper tracking extends belt life, ensures even sanding, and prevents the belt from wandering off the rollers.
Compact Benchtop Footprint
Both sanding stations are integrated into a single compact unit designed for the home workshop bench. Mounts securely to a benchtop with bolts through the base for stable, vibration-free operation.
Common Workshop Applications
Furniture making and cabinetry
Timber toy and craft projects
Shaping curved and profiled parts
End grain finishing on cut timber
Picture frame and box joint prep
Paint and finish surface preparation
Technical Specifications
| Power Supply |
240V AC (corded) |
| Motor Power |
370W |
| Belt Size |
457mm x 75mm |
| Belt Speed |
330 m/min |
| Belt Table Tilt |
0 to 90 degrees |
| Disc Size |
150mm |
| Disc Speed |
1,400 RPM |
| Disc Mitre Table |
0 to 45 degrees |
| Dust Extraction |
Yes, belt and disc ports |
| Belt Tensioning |
Quick-release lever |
| Belt Tracking |
Manual adjustment knob |
| Mounting |
Bolt-down benchtop |
| Warranty |
3 Year Ryobi Warranty (when registered) |
What's in the Box
- Ryobi Belt and Disc Sander (unit)
- Abrasive belt (fitted)
- Abrasive disc (fitted)
- Disc mitre table
- Dust extraction bag
- User manual
Safety Note: Always wear eye protection and a dust mask when operating this sander. Secure the unit to the bench before use. Never sand bare metal, as sparks can ignite accumulated sawdust inside the machine. Keep the dust extraction bag or vacuum connected during use to reduce fine dust exposure. Replacement abrasive belts and discs are sold separately.
