Description
The Klein Tools MM420 is a TRMS auto-ranging digital multimeter built for electricians and serious DIYers who want one meter that covers voltage, current, resistance and more. It is designed for everyday electrical fault finding and testing in residential, business and light-industrial settings, and it comes ready to use with leads, a temperature probe and batteries.
About the product
The MM420 uses auto-ranging true root mean square (TRMS) measurement for more accurate readings on AC signals, and it selects the right range for you so there is less guesswork at the dial. It measures AC and DC voltage up to 600V, AC and DC current up to 10A and resistance up to 50 MΩ. It also handles continuity, diode testing, capacitance, frequency, duty cycle and temperature. Klein Tools designed its test and measurement range with input from working electricians, and the MM420 reflects that with practical, time-saving features.
Key features
- Auto-ranging TRMS measurement for AC and DC voltage and current, plus resistance
- Continuity, diode test, capacitance, frequency, duty-cycle and temperature functions
- Lead Alert protection, with LED illumination to help you place the test leads correctly
- Backlit 4000 count LCD that is easy to read in poor light
- Low battery indicator, plus an easy-access battery and fuse compartment
- Auto power-off, data hold and min/max readings
- CAT III 600V safety rating
- Built to survive a 2 m drop
How to use it
Plug the test leads into the correct input jacks for the measurement you want, turn the dial to the function and let the meter select the range. Use the Lead Alert feature as a prompt that the leads are in the right place before you test. For temperature readings, connect the supplied thermocouple using the adapter. Always read the user manual before use and follow its instructions and cautions.

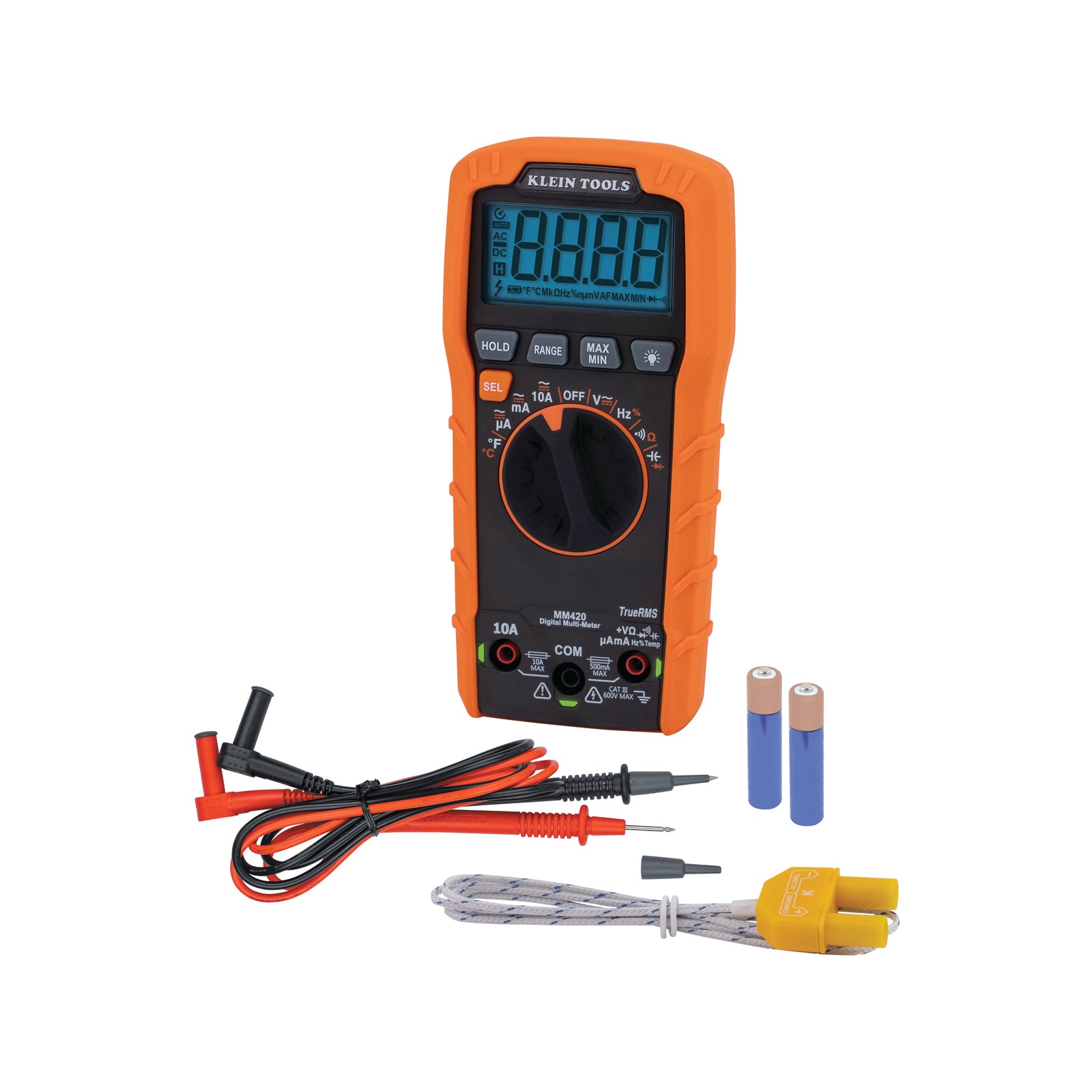

What is included
- MM420 digital multimeter
- Test leads
- Thermocouple with adapter
- Batteries (2 x AAA)
- User manual
Important notes
The MM420 is rated CAT III 600V and is intended for basic and controlled electromagnetic environments such as residential, business and light-industrial locations. Do not use it above its rated voltage or current limits. Accuracy details for each function are listed in the manufacturer's instructions.
Specifications
| Brand |
Klein Tools |
| Product |
MM420 Digital Multimeter, TRMS Auto-Ranging, 600V, with Temperature |
| Model |
MM420 |
| Type |
Handheld digital multimeter, auto-ranging, TRMS |
| Voltage |
Up to 600V AC/DC |
| Current |
Up to 10A AC/DC |
| Resistance |
Up to 50 MΩ |
| Capacitance |
Up to 400 µF |
| Frequency |
1 Hz to 50 kHz |
| Temperature range |
-40°C to 1000°C (-40°F to 1832°F) |
| Display |
4000 count LCD with backlight |
| Safety rating |
CAT III 600V |
| Power |
2 x AAA batteries (included) |
| Drop protection |
2 m (6.6 ft) |
| Colour |
Orange / black |
| Material |
ABS and electrical components |
| Approx. meter size |
162.7 x 79.4 x 46.6 mm |
Care and storage
Keep the meter, leads and probe clean and dry, and check the leads for damage before each use. Never use a damaged lead or meter on a live circuit. Remove the batteries if you will not use the meter for a long time, and store it in a cool, dry place out of reach of children. Refer to the user manual for full safety and operating details.
