Description
High strength methacrylate ester acrylic retaining compound designed for the bonding of cylindrical fitting parts.

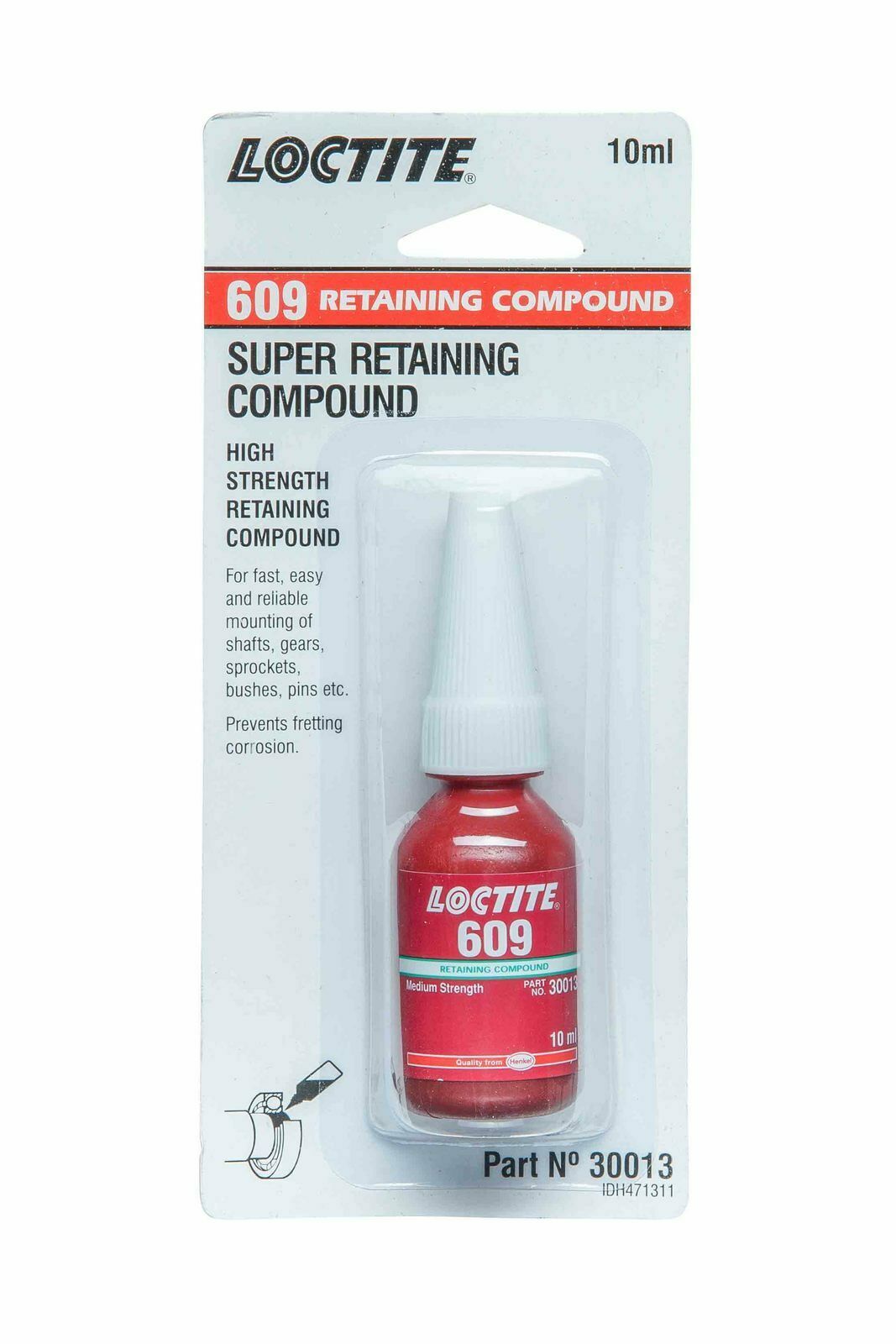

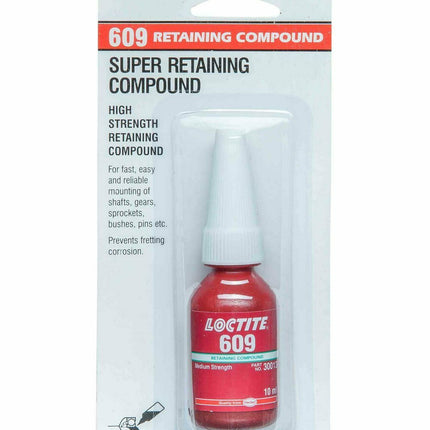

LOCTITE® 609 is a green, high strength methacrylate ester acrylic retaining compound designed for the bonding of cylindrical fitting parts. The product cures in the absence of air between close-fitting metal surfaces. Typical applications include rotor to shafts in fractional and subfractional horsepower motors. Locks bushings and sleeves in housings on shafts.
Augments press fits.
Low viscosity
Prevents loosening and leakage from shock and vibration
Augments press fits
Tested to the lot requirements of Military Specification Mil-R-46082B (this is a regional approval)
Technical Information
Agency Approvals / Specifications ASTM D5363, CFIA Listed, MIL-R-46082B for existing designs
Application Method Pressure
Applications For Close Fitting Parts, Retaining
Colour Green
Cure Type Anaerobic Cure
Diametrical Clearance (Maximum) Unit in.
Fixture Time 10 min.
Fixture Time Temperature 10 °C
Full Cure Temperature 22 °C
Full Cure Time 24 hr.
Gap Fill 0.006 in.
Key Characteristics Fluorescent, Strength: High Strength, Viscosity: Low Viscosity
Number of Components 1 Part
Physical Form Liquid
Shear Strength Unit, Steel psi
Shear Strength, Steel 2300
Specific Gravity 1.1 g/l
Specific Gravity Temperature 25 °C
Substrates Metal
Technology Acrylic
Temperature -65 - 300 °F
Viscosity 125 mPa.s (cP) Brookfield
Viscosity (#7sp/20/rpm) 125 mPa.s (cP) Brookfield
Viscosity Temperature 25 °C
