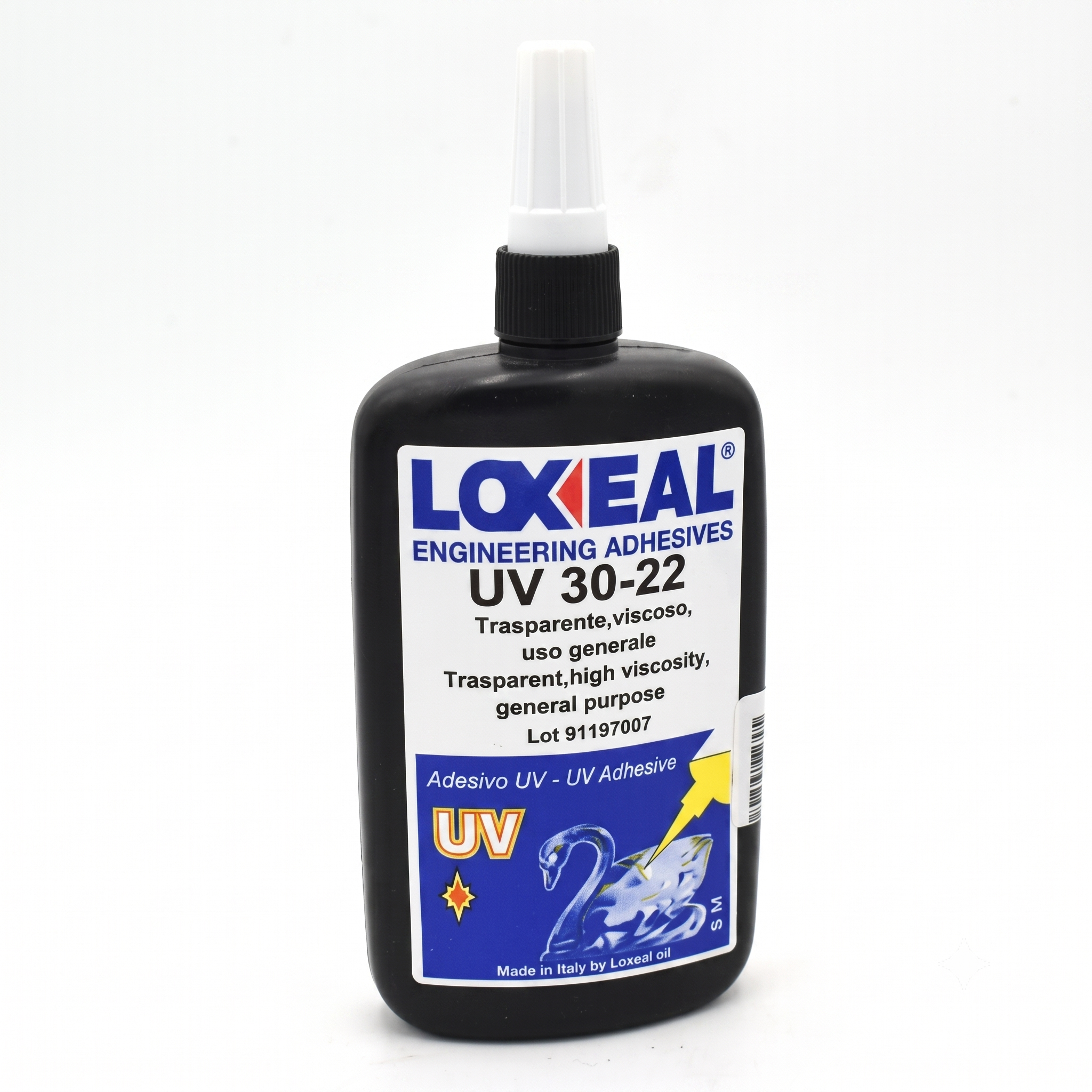

Loxeal 30-22 UV-Curable High Viscosity Adhesive 50ml
Loxeal 30-22 is a fast-curing, high-strength UV adhesive with a thicker, higher-viscosity consistency designed for glass-to-glass and glass-to-metal bonding. The heavier body gives better control on the joint and lets it bridge gaps up to 2 mm, while its crystal-clear, non-yellowing finish with over 98% light transmittance keeps even generous bond lines virtually invisible — ideal for precious crystal work.
Why choose Loxeal 30-22?
- High viscosity (5,500–7,500 mPa·s) resists flowing off the joint before cure
- Fills bond lines from 0.03 mm up to 2 mm — more forgiving on uneven parts
- Cures in seconds under UV light (365 nm)
- Clear, colourless joints with excellent optical clarity
- Strong bonds on glass-to-glass and glass-to-metal assemblies
Typical applications
Glass-to-glass and glass-to-metal bonding in glass furniture, decorative items and crystal ware — especially assemblies with larger or less uniform bond gaps where a runnier adhesive would drain away.
How to use
- Ensure both parts are clean and completely dry.
- Apply the adhesive to one surface and bring the parts together.
- At least one part must be UV-transparent — position the assembly before exposure.
- Cure with a UV source emitting between 365 nm and 420 nm (around 100 mW/cm² recommended); exposure of 6–10 seconds is typically sufficient.
- Extend the exposure for wider gaps or substrates that filter UV.
Cure times
Typical fixture under a suitable UV lamp is 6–10 seconds. Cure time varies with lamp intensity, distance from the light source, bond-line gap and the light transmittance of the substrate.
Specifications
| Chemistry |
Methacrylate ester, UV-curing |
| Colour |
Clear / colourless |
| Viscosity (+25°C) |
5,500–7,500 mPa·s |
| Specific gravity |
1.10 g/ml |
| Gap fill |
0.03–2 mm |
| Tensile strength (ASTM D-2095-69) |
8–12 N/mm² |
| Hardness |
Shore D 50–65 |
| Elongation at break |
80–100% |
| Light transmittance |
> 98% |
| Refractive index |
1.49 |
| Service temperature |
-55°C to +120°C |
| Flash point |
> +100°C |
| Shelf life |
1 year at +25°C in original unopened packaging |
Important notes
- At least one bonded part must transmit UV light for the adhesive to cure.
- Cure speed drops with tinted or UV-filtering substrates — extend exposure accordingly.
- Store in a cool, dry place at no more than +25°C, away from daylight; do not return used product to the bottle.
Safety
Consult the Safety Data Sheet (SDS) before use and avoid looking directly at UV curing lamps without eye protection.
The information above is provided as a general guide only, based on the manufacturer's technical data. Always confirm suitability for your specific application before use.
