Description

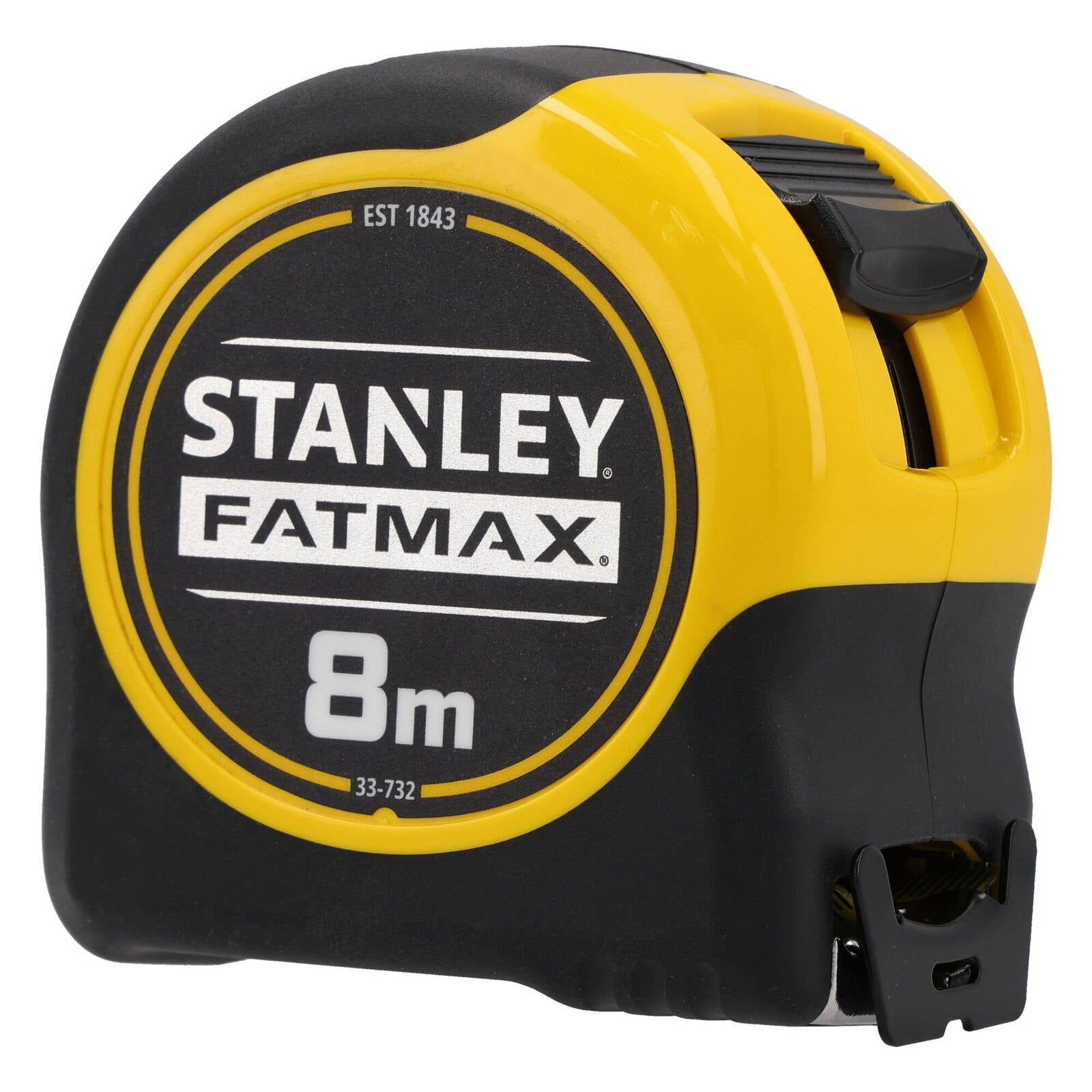

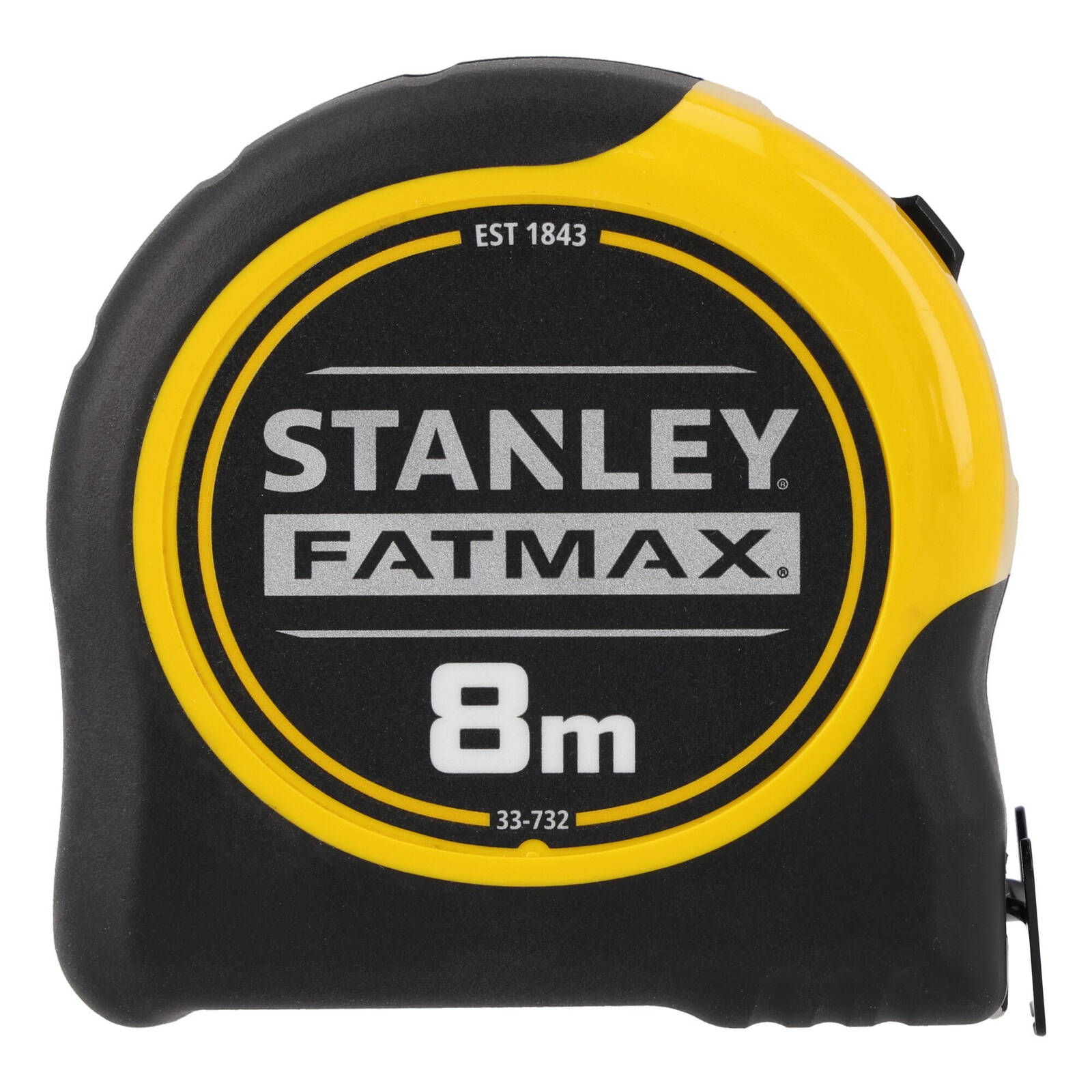

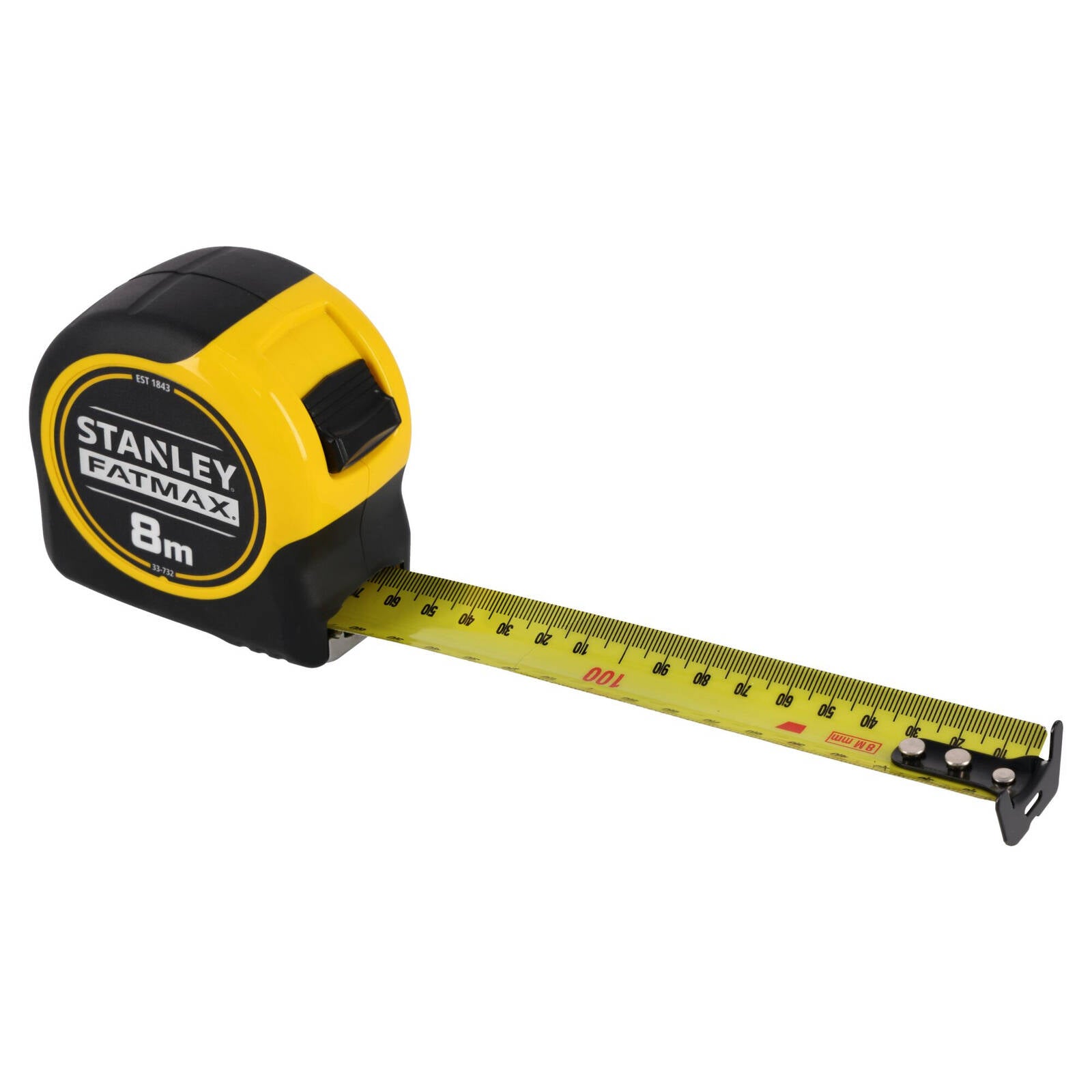

The Stanley FatMax BladeArmor 8m Tape Measure (model 33-732) is a tough, wide-blade tape built for tradies and home DIYers who want a measuring tool that holds up to daily knocks. The 32mm blade stays rigid over a long reach, so one person can measure across a room or up a wall without the tape folding.
About the product
The first section of the blade carries Stanley's BladeArmor coating, a patented thermoplastic layer designed to resist wear and reduce blade breakage where tapes usually fail first. The rest of the blade has a Mylar polyester coating to help the markings last. A metric-only scale with clear graphics makes readings quick, and the printed markings on the blade are easy to pick out at a glance.
Where to use it
Indoors: framing, cabinetry, flooring, shelving, wall fit-outs and general renovation measuring.
Outdoors: decking, fencing, landscaping and other site work, where its hard-wearing blade and impact-resistant case come in handy.
Features
- 32mm wide blade with about 3.3m of standout for solo measuring
- BladeArmor coating on the initial section of the blade, plus a Mylar polyester coated blade for extended life
- True Zero end hook that allows for accurate inside and outside measuring, with case dimension marking to help with inside measurements
- 3-rivet end hook with a multi-catch design that grips on the side, top and bottom
- Patented airlock slide lock to hold the blade in place
- High-impact case with a cushioned rubber overmould grip for comfort and a non-slip hold
- Stainless steel wear plate that protects the case from being cut by the blade

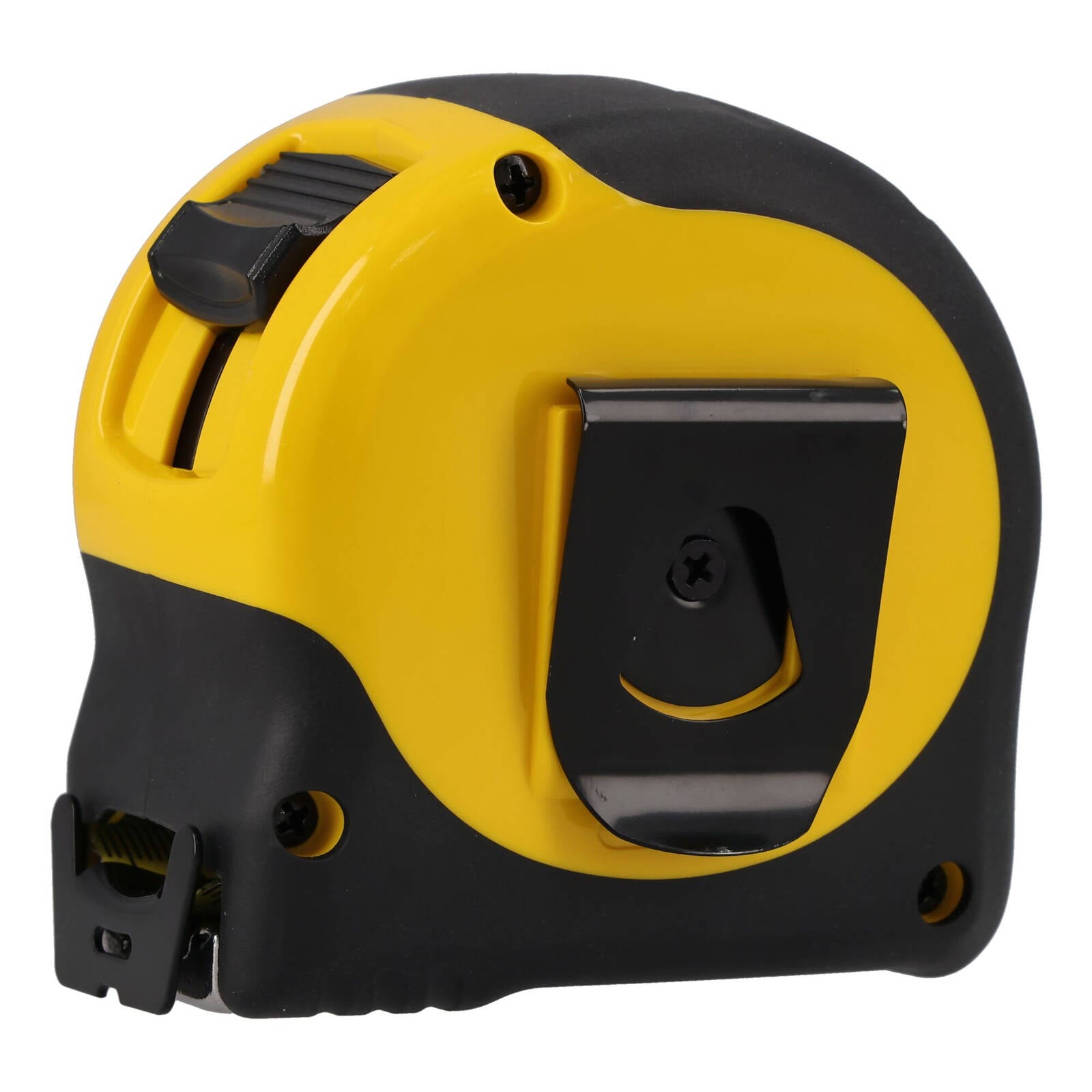

- Integrated belt clip for carrying on your belt or pocket
How to use it
Hook the end over the edge of the material and pull the blade out to the length you need. Slide the lock to hold the blade in position while you read the measurement or mark up. For inside measurements, press the end against the opposite surface and add the case dimension marked on the body. To retract, release the lock and guide the blade back by hand so it does not whip into the case.
Important notes
This is a metric-only tape. Letting the blade snap back at speed can wear the hook and bend the blade, so control the return. Avoid kinking or bending the blade sharply, and keep the blade clean of grit and debris for the longest life.
Specifications
| Brand |
Stanley FatMax |
| Product |
FatMax BladeArmor Wide Blade 8m Tape Measure |
| Model number |
33-732 |
| Tape length |
8m |
| Blade width |
32mm |
| Blade standout |
About 3.3m |
| Units |
Metric |
| Colour |
Yellow |
| Blade coating |
BladeArmor on initial section, Mylar polyester coated blade |
| Locking |
Airlock slide lock |
| Belt clip |
Yes |
| Electronic |
No |
| Pack size (approx.) |
180 x 120 x 60mm |
Care and storage
Wipe the blade clean with a dry cloth after use, especially after working in dusty, wet or muddy conditions. Retract the blade fully and store the tape in a dry spot or clipped to your belt. Avoid dropping it from height or leaving it exposed to moisture for long periods, and keep the blade edge away from fingers when retracting.
